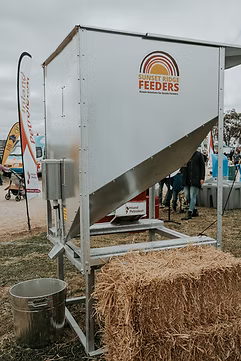

1200 Feed-Out Bin
Our grain feed-out bin is the first of its kind. We have refined the process of hand-feeding stock to a one-person job. At the press of a button, you can discharge grain into troughs or directly onto the ground from the back of your ute or trailing feed out bin.

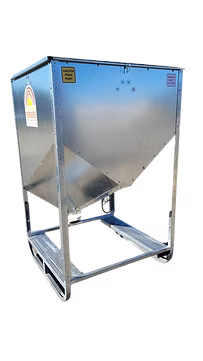

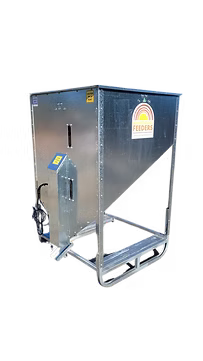

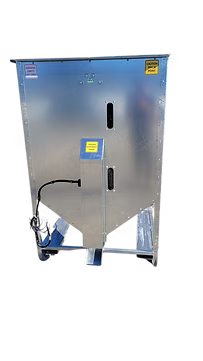

Ute Mount General Specs
-
Height - 1600mm
-
Bin Width - 1200mm
-
Bin Length - 1200mm
-
Dry Weight - 80KG Approx.
-
Gross Weight - 1000KG Approx.
-
Cubic Capacity - 1.0 m3
-
Grain Gate - 65mm x 150mm

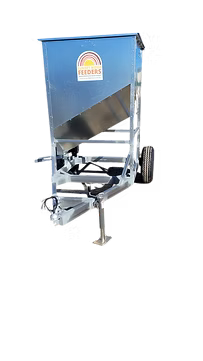

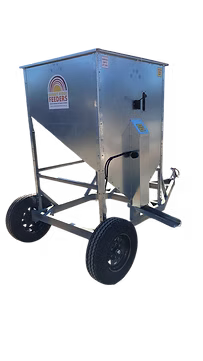

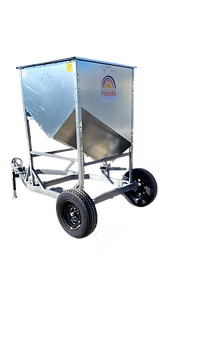

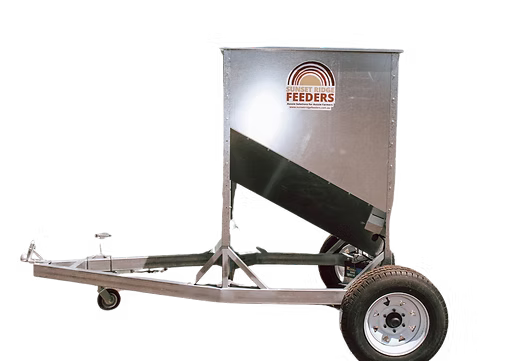

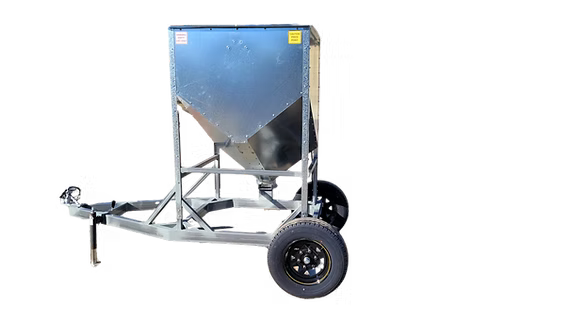

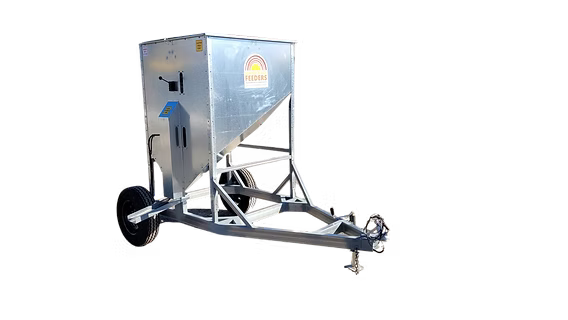

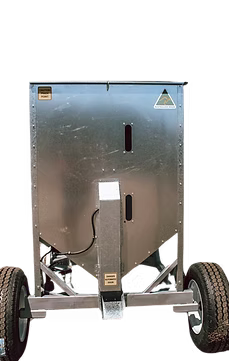

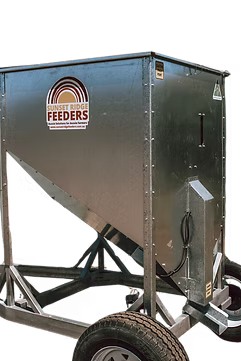

Trailing General Specs
-
Height - 2050mm
-
Overall Width - 1650mm
-
Overall Length - 2680mm
-
Dry Weight - 280KG Approx.
-
Gross Weight - 1,200KG Approx.
-
Cubic Capacity - 1.0 m3
-
Grain Gate - 65mm x 150mm
-
Ground Clearance - 350-400mm Approx.
Our grain feed-out bin is the first of its kind. We have refined the process of hand-feeding stock to a one-person job. At the press of a button, you can be discharging grain into troughs or directly onto the ground.
After years of designing and product testing, we have created a superior design with exceptional features that meets everyday demands and responds very well to the harsh Australian climate.
-

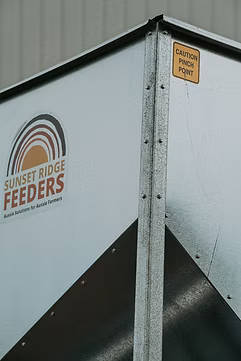

No rust – Over time, painted welds can wear off or thin out, leading to rust or holes. Our Feed-Out Bins have no welds, preventing this issue.
-
Heavy-duty galvanised design – Built strong for the Australian climate; protected from rust and oxidation. Bolt locations are calculated for maximum structural strength.
-
Adjustable grain flow rate – Designed for rams, ewes, and lambs; easy to use and highly practical.
-

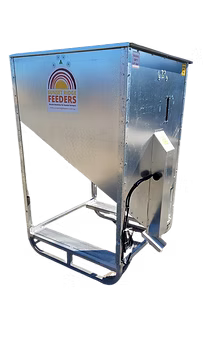

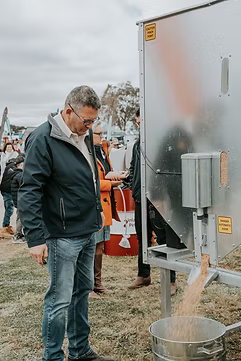

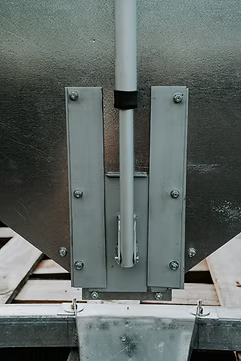

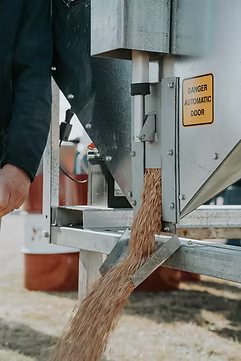

Remote-controlled grain gate – Lift the gate and release grain onto the ground with just a push of a button from inside your cab for maximum convenience.
-
Optional tyne location sockets and trailing chassis – Allows easy movement using forklifts; all Feed-Out Bins are available on a trailing chassis.
-
Australian designed and manufactured – Built by Australian farmers.
Features
-
Easy access sliding lid
-
Remote-controlled grain gate
-
Heavy-duty Galvanised design
-

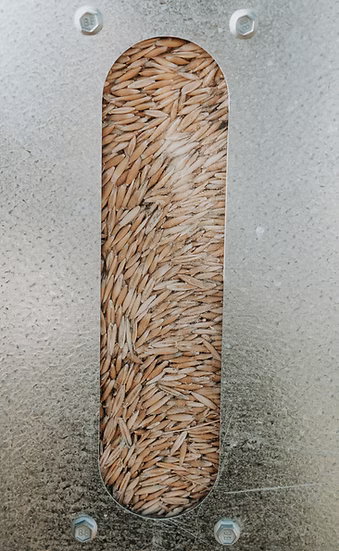

Feed level indicators
-
Adjustable grain flow rate
-
Tyne location sockets (opt.)
-
Only available assembled
